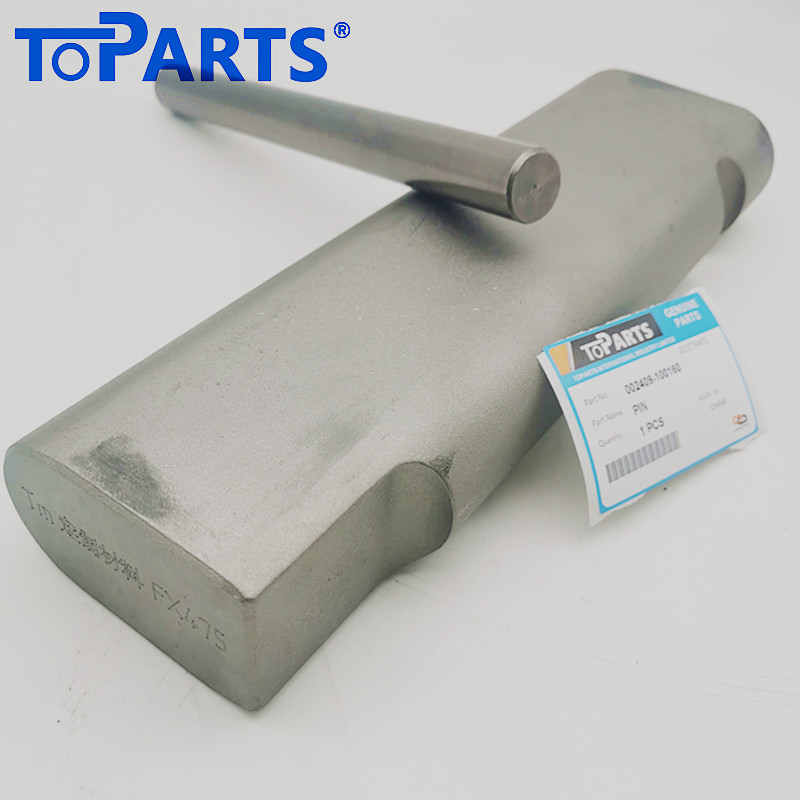

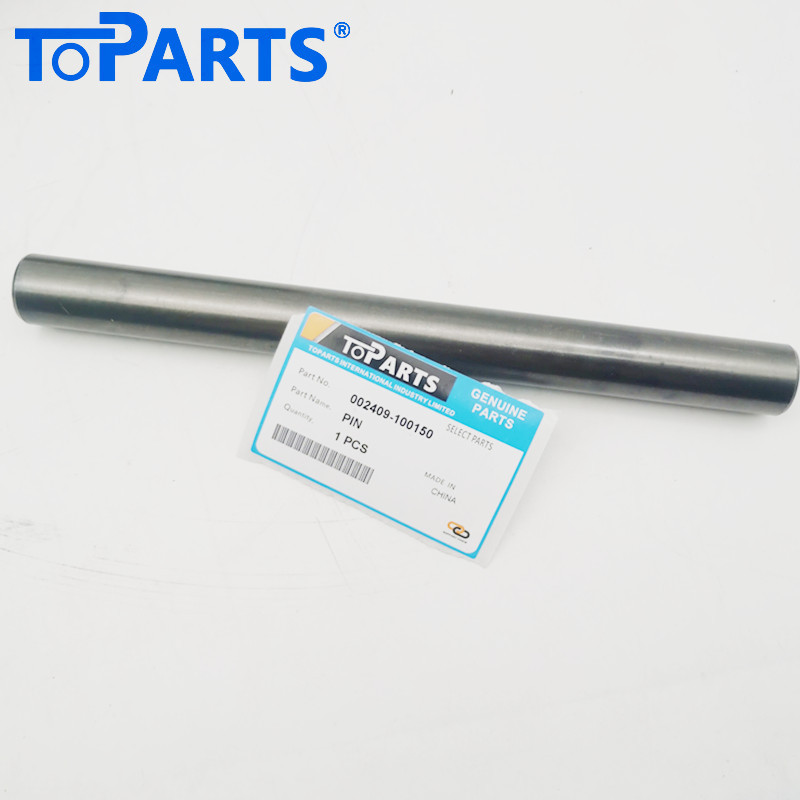

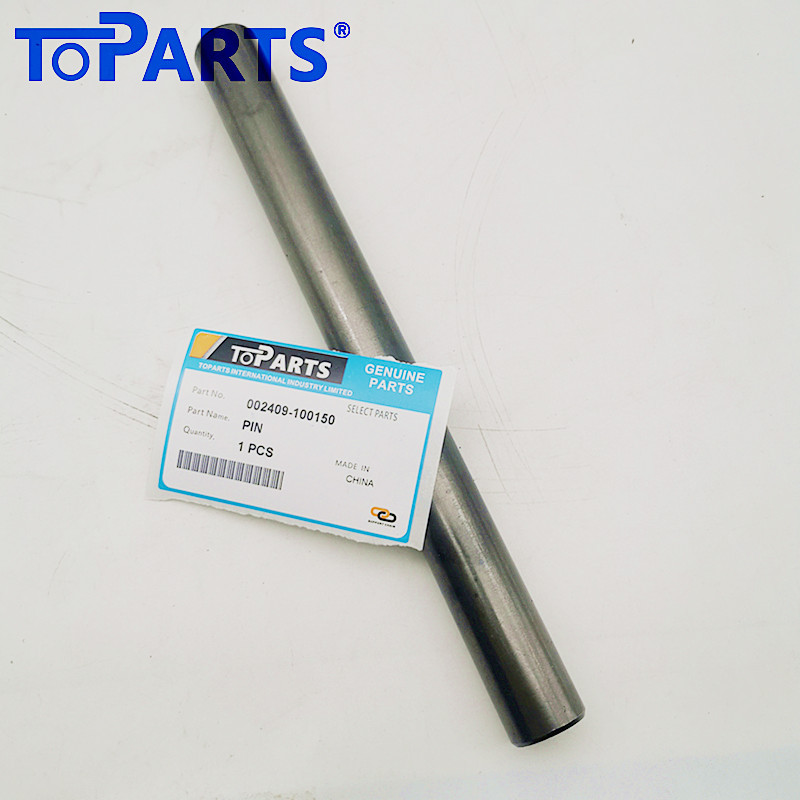

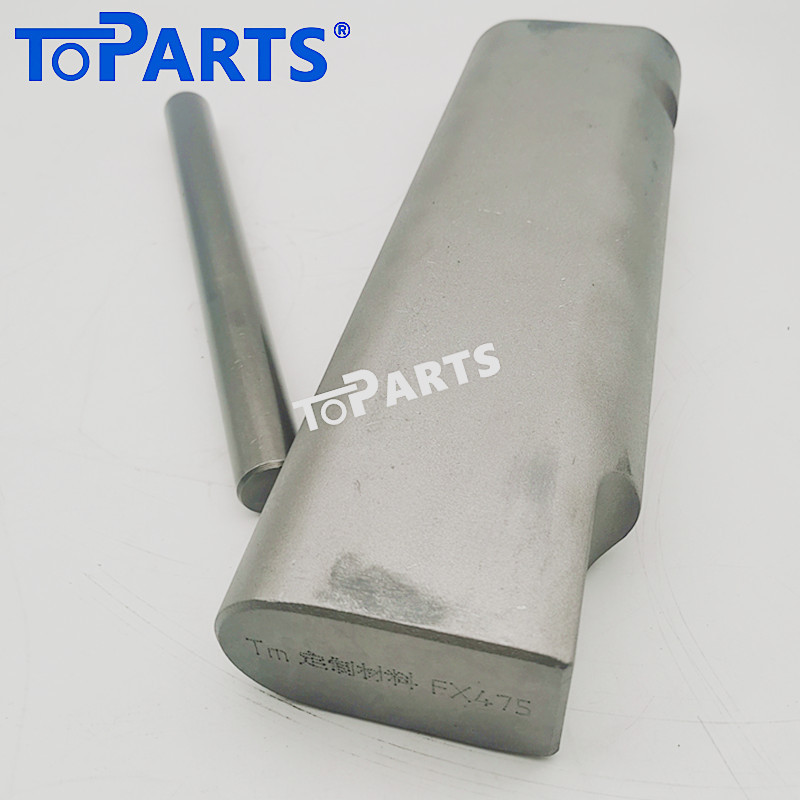

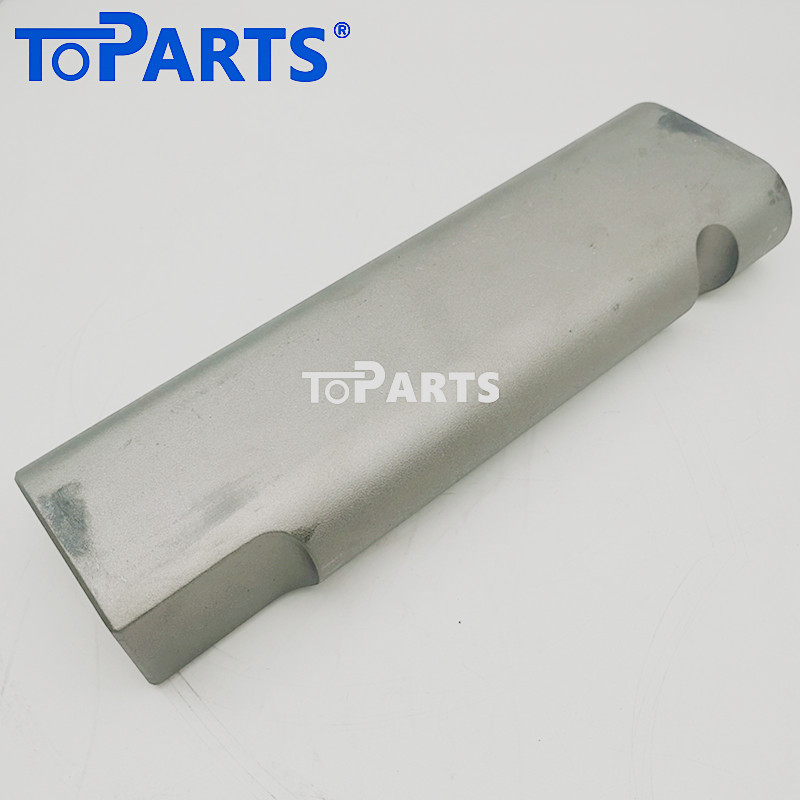

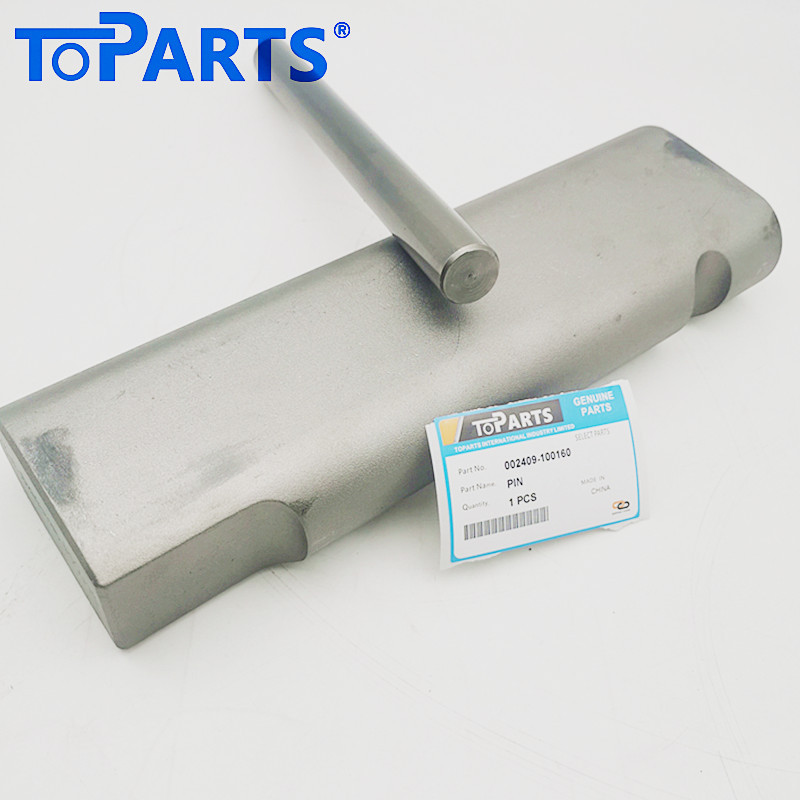

Name: 002409-100160 Furukawa Fxj475 hydraulic breaker Rod Pin 002409-100150 STOP PIN
Brand: TOPARTS
SKU: TP0284
Availability: InStock
Rating: 5 (1 reviews)

Home > Hydraulic Breaker parts

002409-100160 Furukawa Fxj475 hydraulic breaker Rod Pin 002409-100150 STOP PIN

Description Review

Description

Model:Furukawa Fxj475 hydraulic breaker

Part Name: Hydraulic breaker Rod Pin

Part Number:002409-100160,002409-100150

Tool:170MM

Certification: IOS 9000

Packaging Details: bag or box +carton

Material:Steel

Delivery Time: 2-5days upon payments confirmed

Position :FURUKAWA Hydraulic Breaker Systerm

Brand:TOPARTS, OEM or as Required

Payment Terms: TT/Paypal/WEST UNION

Supply Ability:100

MOQ:1PCS

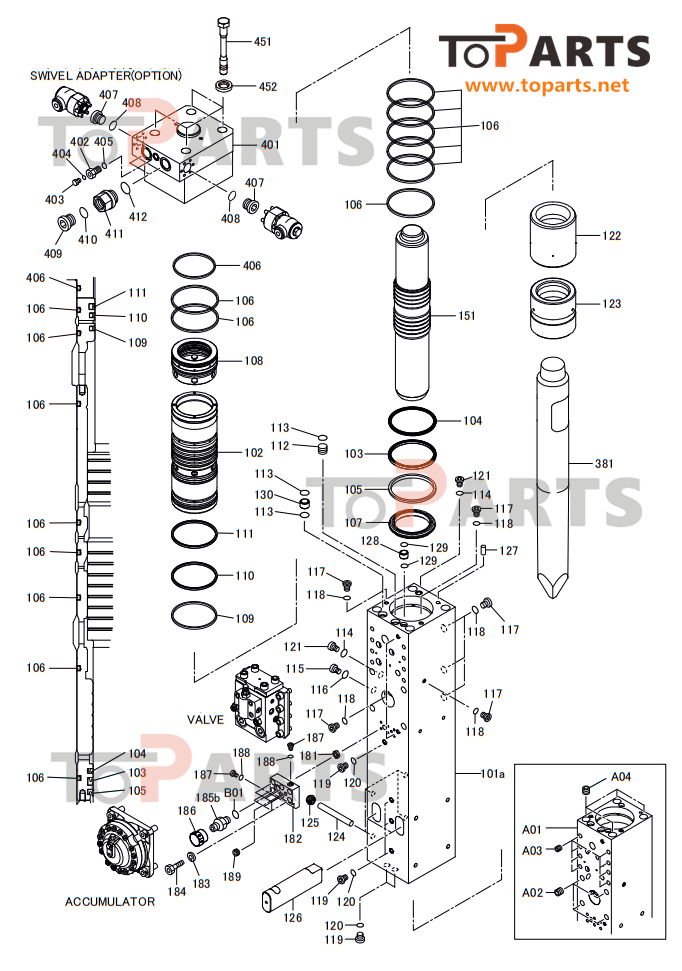

Parts list

ITEM	PART NO.	PART NAME
101	002409-100010	CYLINDER
A01	*	CYLINDER
A02	HB20G-10105	HELI-COIL INSERT
A03	HB40G-10104	HELI-COIL INSERT
A04	002409-900010	HELI-COIL INSERT
102	002409-100030	CYLINDER LINER
103	002409-100040	U-PACKING
104	002409-100050	BUFFER RING
105	002409-100060	SCRAPER
106	002409-100070	DUAL SEAL
107	002409-100080	DISTANCE WASHER
108	002409-100090	SEAL RETAINER
109	002409-100100	GLIDE RING
110	002409-100110	STEP SEAL
111	002409-100120	GLIDE RING
112	HB50G-10120	PLUG
113	160011-00040	O-RING
114	160011-00018	O-RING
115	084891-06000	PLUG
116	160011-00024	O-RING
117	084891-02000	PLUG
118	160011-00011	O-RING
119	084891-03000	PLUG
120	160011-00014	O-RING
121	084891-04000	PLUG
122	002409-100130	FRONT HOLDER
123	002409-100140	FRONT BUSH
124	002409-100150	STOP PIN
125	002407-100110	A-PLUG
126	002409-100160	ROD PIN
127	001300-20118	KNOCK PIN
128	F22-10121	BUSH
129	160011-00029	O-RING
130	HB50G-10121	BUSH
151	002409-110010	PISTON
181	F22-20121	CHECK VALVE
182	002407-120010	PORT BLOCK
183	000500-220110	SPRING WASHER
184	102032-14045	SOCKET BOLT
185b	084869-06000	MALE CONNECTOR
B01	160011-00024	*O-RING
186	F22-30113	CAP
187	084891-02000	GPF PLUG
188	160011-00011	O-RING
189	166152-02000	HOLLOW PLUG
381	002409-250010	MOIL POINT ROD
381	002409-250020	FLAT ROD
381	002409-250030	WEDGE POINT ROD
381	002409-250040	BALL POINT ROD
401	002409-300020	BACK HEAD
402	HB15G-30103	CHARGING VALVE
403	HB20G-30109	PLUG
404	160011-00006	O-RING
405	160011-00018	O-RING
406	002409-100070	DUAL SEAL
407	084891-10000	PLUG
408	160011-00029	O-RING
409	084891-12000	PLUG
410	160011-00038	O-RING
411	002409-130040	CONNECTOR
412	161011-00044	O-RING
413	F45-30114	STICKER
451	002409-360010	BOLT
452	002409-360020	WASHER
	902409-920050	SEAL KIT (A) (R1)
	902409-920060	SEAL KIT (B) (R2)
	902409-920050	SEAL KIT (A)
851	002409-100040	*U-PACKING
852	002409-100050	*BUFFER RING
853	002409-100060	*SCRAPER
854	002409-100070	*DUAL SEAL
855	002409-100100	*GLIDE RING
856	002409-100110	*STEP SEAL
857	002409-100120	*GLIDE RING
858	HB50G-10120	*PLUG
859	160011-00040	*O-RING
860	160011-00029	*O-RING
861	F22-10121	*BUSH
862	HB50G-10121	*BUSH
	902409-920060	SEAL KIT (B)
851	160011-00018	*O-RING
852	160011-00024	*O-RING
853	160011-00011	*O-RING
854	160011-00014	*O-RING
855	002407-100110	*A-PLUG
856	160011-00006	*O-RING
857	160011-00029	*O-RING
858	160011-00038	*O-RING
859	161011-00044	*O-RING
B04	F22-13123	**STROKE PLUG
B05	120133-16000	**FINE THREADED NUT
B06	160011-00024	**O-RING
B07	160011-00009	**O-RING
B08	262021-00009	**BACK-UP RING
B09	F22-13522	**DUAL SEAL
B10	F22-13521	**DUAL SEAL
023	F22-13124	*SPRING
024	160041-00075	*O-RING
025	084891-04000	*PLUG
026	160011-00018	*O-RING
027	002408-130060	*PRESSURE CONTROL VALVE
028	102033-16040	*SOCKET BOLT
029	161025-00030	*O-RING
	902409-920070	SEAL KIT (C) (R3)
	902407-920090	SEAL KIT (E) PRESSURE CONTROL VALVE
	F45-70001	ACCUMULATOR ASSEMBLY
501	HB40G-70101	*ACCUMULATOR COVER
502	F45-70102	*ACCUMULATOR BODY
503	HB40G-70111	*DIAPHRAGM
504	HB40G-70219	*FACE SEAL
505	102033-20060	*SOCKET BOLT
506	HB50G-70115	*SOCKET BOLT
507	007120-70134	*VALVE
508	007010-70029	*CAP
509	007010-70030	*PLUG
510	160011-00005	*O-RING
511	160011-00014	*O-RING
	902409-920070	SEAL KIT (C) (R3)
851	902409-920070 002406-130050	SEAL KIT (C) *DUAL SEAL
852	160011-00029	*O-RING
853	160011-00014	*O-RING
854	160011-00008	*O-RING
855	002407-130090	*DUAL SEAL
856	161025-00025	*O-RING
857	161025-00050	*O-RING
858	HB50G-13208	*FACE SEAL
859	161011-00044	*O-RING
860	160041-00075	*O-RING
861	160011-00018	*O-RING
862	HB40G-70219	*FACE SEAL
863	160011-00005	*O-RING
864	161025-00030	*O-RING
865	160011-00024	*O-RING
866	160011-00009	*O-RING
867	262021-00009	*BACK-UP RING
868	F22-13522	*DUAL SEAL
869	F22-13521	*DUAL SEAL
	902409-340010	SWIVEL ADAPTER ASSEMBLY
431	002409-340010	*SWIVEL BODY
432	002409-340020	*SWIVEL ADAPTER
433	F45-34304	*SPACER (A)
434	160021-00055	*O-RING
435	002409-340030	*DUAL SEAL
436	F45-34306	*U-PACKING
437	F45-34305	*SPACER (B)
438	F45-34203	*PLUG
439	160011-00029	*O-RING
440	084891-12000	*PLUG
441	160011-00038	*O-RING
442	102033-14065	*SOCKET BOLT
443	F45-34308	*NORD-LOCK WASHER
902409-920080		SEAL KIT (D) (R4)
001	902409-920080 F45-34304	SEAL KIT(D) *SPACER (A)
002	160021-00055	*O-RING
003	002409-340030	*DUAL SEAL
004	F45-34306	*U-PACKING
005	F45-34305	*SPACER (B)
006	160011-00029	*O-RING
007	160011-00038	*O-RING
008	F45-34308	*NORD-LOCK WASHER

Application chart

Our customers

Toparts is a leading manufacturer and distributor of top-of-the-line Furukawa hydraulic breaker parts. With our commitment to excellence and a strong reputation for delivering superior products, we have established ourselves as a trusted partner in the construction and mining industries. In this article, we will highlight the key features and benefits of our high-quality Furukawa hydraulic breaker parts.

Uncompromising Quality:

At Toparts, we understand the importance of durability and reliability in hydraulic breaker parts. Our Furukawa hydraulic breaker parts undergo rigorous quality control measures to ensure they meet the highest industry standards. We use premium materials and employ advanced manufacturing techniques to deliver products that can withstand the most demanding working conditions.

Extensive Product Range:

We offer a comprehensive range of Furukawa hydraulic breaker parts, catering to various models and specifications. Whether you require chisels, pistons, front heads, back heads, or other components, we have you covered. Our diverse product lineup ensures that you can find the right parts to enhance the performance and longevity of your Furukawa hydraulic breakers.

Precision Engineering:

Toparts takes pride in our precision engineering capabilities. Our team of skilled professionals utilizes cutting-edge technology and state-of-the-art machinery to manufacture hydraulic breaker parts with exceptional accuracy and precision. This attention to detail ensures a perfect fit and optimal performance, resulting in reduced downtime and enhanced productivity on the job site.

Superior Performance:

By choosing Toparts for your Furukawa hydraulic breaker parts, you can expect exceptional performance and efficiency. Our parts are designed to deliver maximum impact force and energy transfer, allowing your hydraulic breakers to operate at their full potential. With our high-quality components, you can accomplish your tasks more effectively and complete projects in a timely manner.

Cost-Effective Solutions:

In addition to their outstanding quality, our Furukawa hydraulic breaker parts offer excellent value for money. We understand the importance of cost-effective solutions in the construction and mining industries. By investing in our parts, you can minimize maintenance costs, reduce equipment downtime, and maximize the lifespan of your hydraulic breakers, ultimately leading to significant cost savings in the long run.

Conclusion:

Toparts is your go-to provider for high-quality Furukawa hydraulic breaker parts. With our unwavering commitment to quality, extensive product range, precision engineering, superior performance, and cost-effective solutions, we strive to exceed your expectations. Partner with us to enhance the performance and reliability of your Furukawa hydraulic breakers, and experience the difference that Toparts can make in your operations.

Tag:Boom seal kit,hydraulic cylinder seals,Bucket seal kit,Komatsu Service Seal kit,Wheel loaders cylinder seal kit
