English

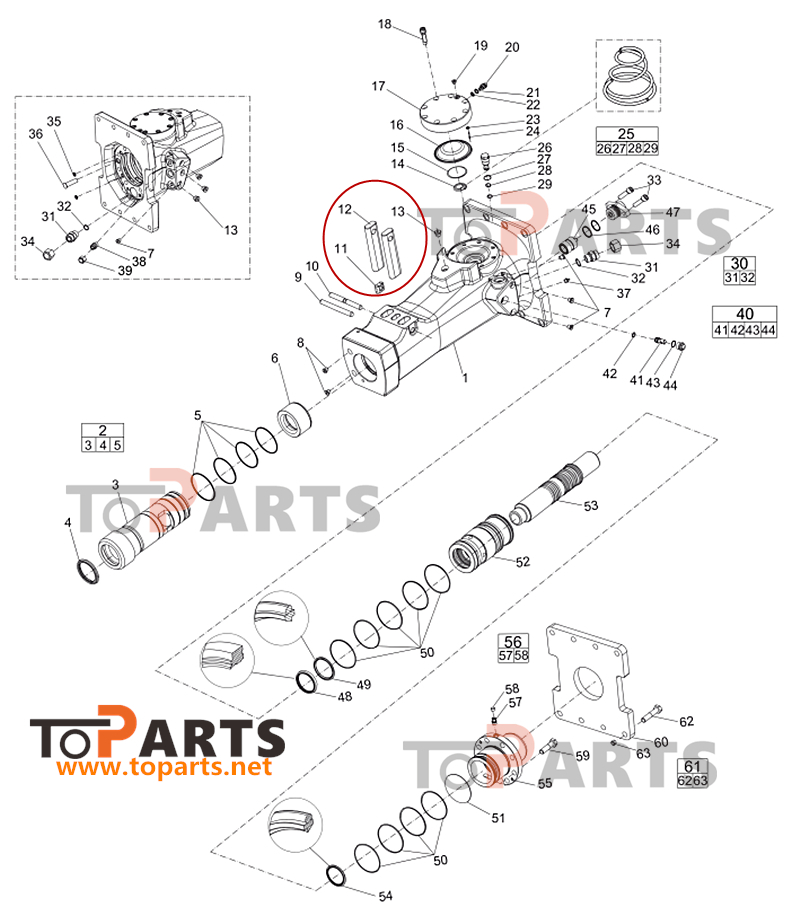

Parts list
|
Item |
Part No. |
Name |
Qty |
|
1 |
- |
Breaker body |
1 |
|
2 |
3315301980 |
Bushing standard, complete |
1 |
|
3 |
- |
Bushing, |
1 |
|
4 |
3315325000 |
Scraper ring |
1 |
|
5 |
0663210617 |
O-ring |
4 |
|
6 |
3315301400 |
Stop ring |
1 |
|
7 |
0686644207 |
Plug, VSTI R 1/4-ED |
4 |
|
8 |
3315395200 |
Water nozzle |
2 |
|
9 |
0108169128 |
Conex spring pin, option, |
1 |
|
10 |
3315203100 |
Lock pin |
1 |
|
11 |
3315141900 |
Lock buffer |
1 |
|
12 |
3315203000 |
Tool retainer |
2 |
|
13 |
0686371801 |
Plug, VSTI R 3⁄8 - ED |
4 |
|
14 |
3315303500 |
Coil spring |
1 |
|
15 |
3315400700 |
Diaphragm support |
1 |
|
16 |
3315235000 |
Diaphragm |
1 |
|
17 |
3315348700 |
Accumulator house |
1 |
|
18 |
0211196534 |
Hexagon socket screw, Screw with extra high fatigue strength. |
8 |
|
19 |
0686371805 |
Plug VSTI R 1⁄8-ED |
1 |
|
20 |
3315366000 |
Charge valve |
1 |
|
21 |
0663212000 |
O-ring |
1 |
|
22 |
3115329002 |
Seal ring |
1 |
|
23 |
0663211400 |
O-ring |
1 |
|
24 |
0101414000 |
Parallel pin |
1 |
|
25 |
3315365800 |
Pressure relief valve, complete |
1 |
|
26 |
- |
Pressure relief valve |
1 |
|
27 |
9125621100 |
O-ring, |
1 |
|
28 |
0663210421 |
O-ring, |
1 |
|
29 |
0661200401 |
Back-up ring |
1 |
|
30 |
0580001845 |
Nipple, complete |
1 |
|
31 |
- |
Nipple |
1 |
|
32 |
0664000004 |
Seal ring |
1 |
|
33 |
0211110349 |
Screw, |
2 |
|
34 |
3361353486 |
Cap(Valid from s/n BES043707) |
2 |
|
35 |
0665090014 |
Seal, |
2 |
|
36 |
3315336700 |
Plug |
1 |
|
37 |
0544215300 |
Grease nipple, |
1 |
|
38 |
3176634800 |
Adapter |
1 |
|
39 |
3176542900 |
Cap, option |
1 |
|
40 |
3315369467 |
Restrictor, complete |
1 |
|
41 |
- |
Restrictor, |
1 |
|
42 |
0663210421 |
O-ring, |
1 |
|
43 |
9125621100 |
O-ring, |
1 |
|
44 |
- |
Restrictor plug |
1 |
|
45 |
3315277600 |
Control valve |
1 |
|
46 |
0663211444 |
O-ring, |
2 |
|
47 |
3315352013 |
Valve cover |
1 |
|
48 |
0665909957 |
Wiper |
1 |
|
49 |
0665070137 |
Piston rod seal |
1 |
|
50 |
0663990031 |
Seal ring |
9 |
|
51 |
0663210669 |
Seal ring |
1 |
|
52 |
3315301700 |
Liner |
1 |
|
53 |
3315302100 |
Piston |
1 |
|
54 |
0665070146 |
Piston rod seal |
1 |
|
55 |
3315302000 |
Back head |
1 |
|
56 |
3315244881 |
Check valve, complete |
1 |
|
57 |
- |
Check valve |
1 |
|
58 |
3315280800 |
Valve rubber |
1 |
|
59 |
0147148103 |
Hex. head screw, |
8 |
|
60 |
3315356600 |
Base plate with through borings |
1 |
|
61 |
3315365360 |
Bolt kit |
1 |
|
62 |
- |
Hex. head screw, |
8 |
|
63 |
- |
Nut, M16 |
8 |

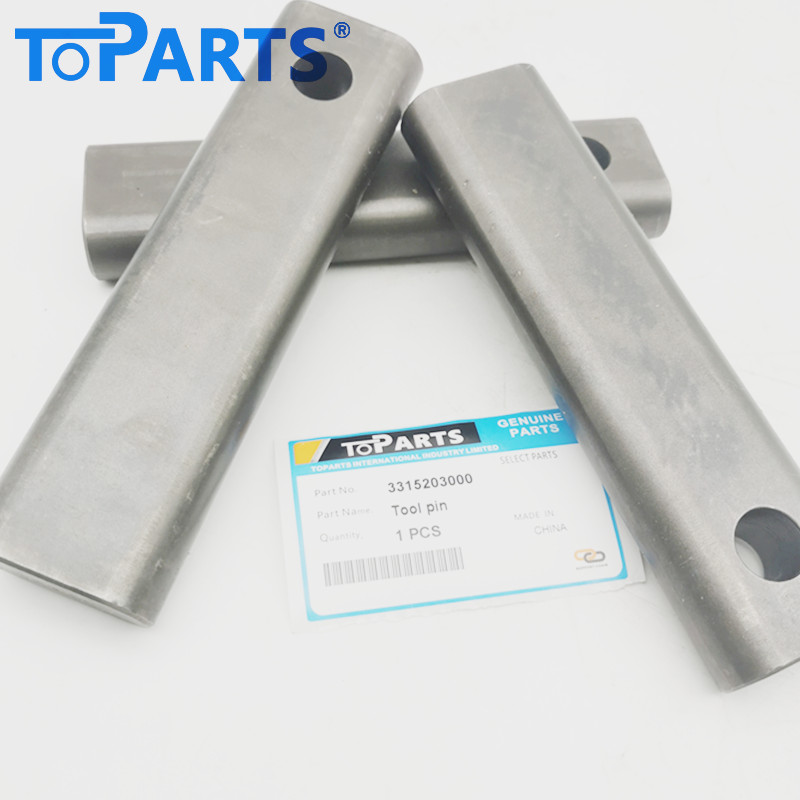

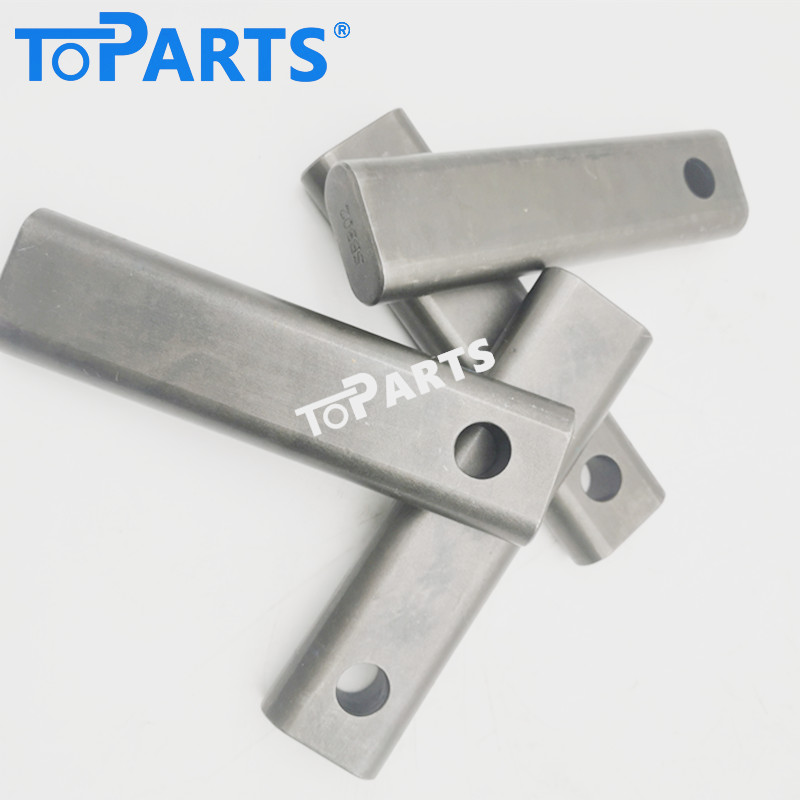

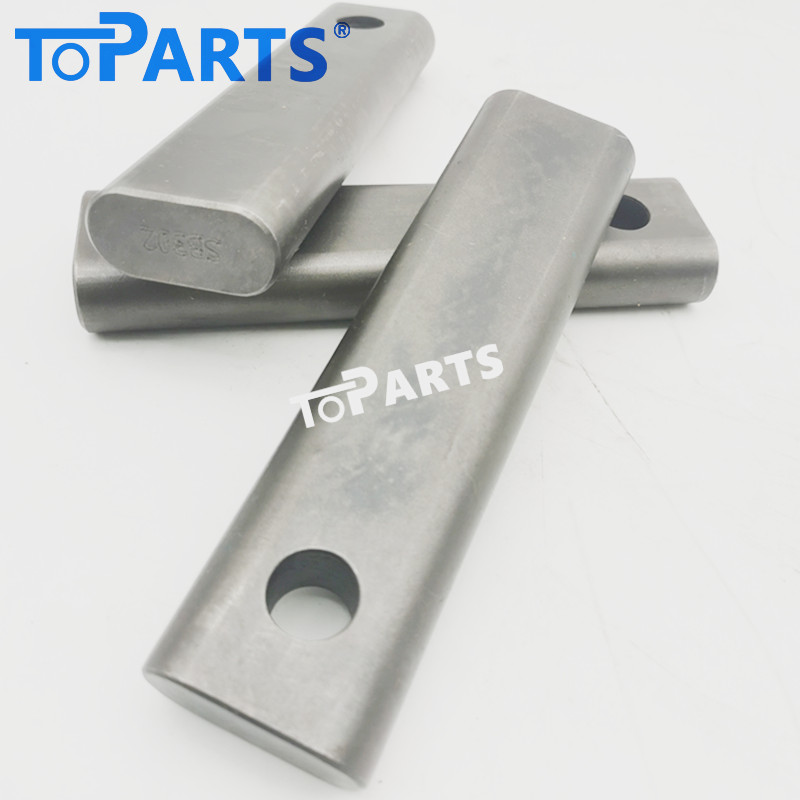

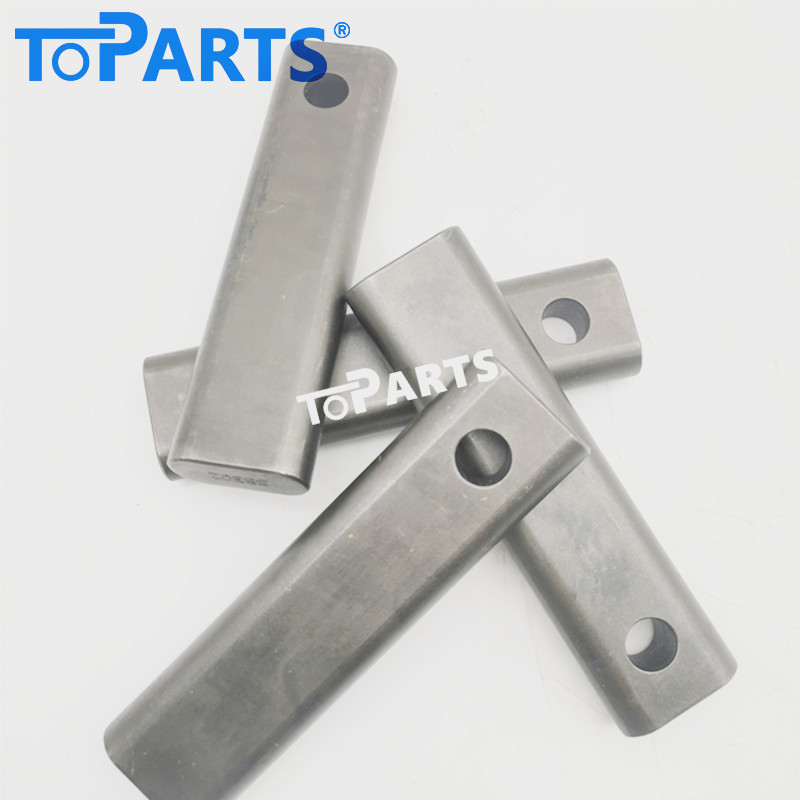

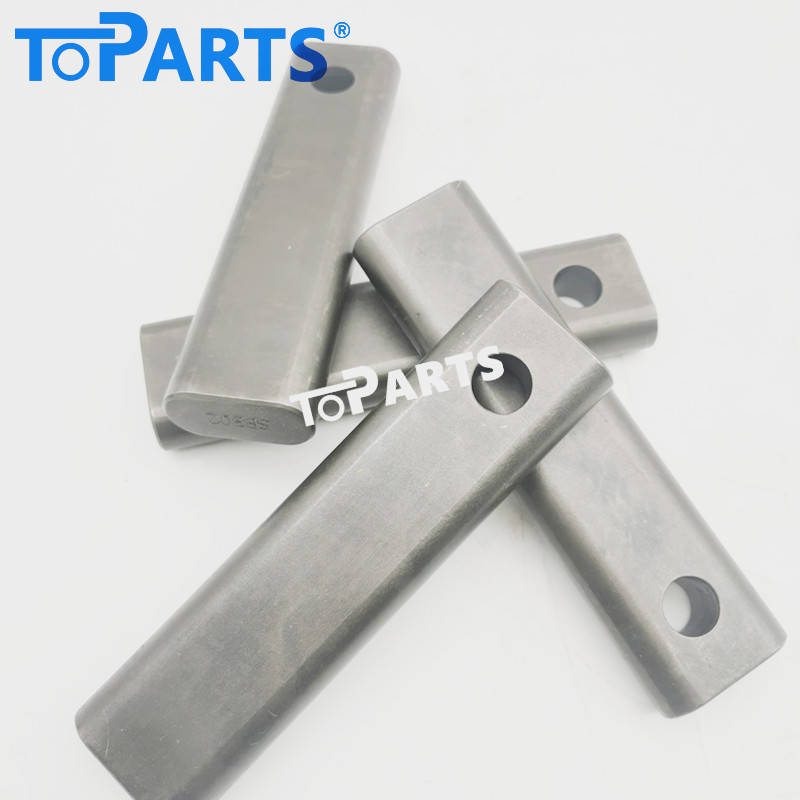

Toparts 3315203000 Hydraulic Breaker Tool Retainer for Atlas Copco SB302 / SBU340
Ensure the safety and operational integrity of your hydraulic attachment with the Toparts 3315203000 Tool Retainer (Rod Pin). This essential heavy-duty component is precision-engineered specifically for Atlas Copco SB302 and SBU340 Hydraulic Breakers, serving as the critical link that secures the working tool within the hammer.
Engineered for Atlas Copco SB & SBU Series Durability
The tool retainer, often referred to as a Rod Pin or Retainer Pin, is a high-wear part that absorbs significant lateral forces and vibrations during the breaking process. A worn or fractured retainer can lead to tool loss or catastrophic damage to the breaker's lower housing. Toparts 3315203000 is manufactured as a high-precision, direct aftermarket replacement that meets or exceeds the metallurgical standards of the original equipment.
Key Features and Benefits:
Direct OEM Replacement: Fully compatible with Atlas Copco OEM part number 3315203000, ensuring a perfect fit for both SB302 and SBU340 models.
High-Strength Alloy Steel: Forged from premium alloy steel and subjected to advanced heat treatment (induction hardening) to provide a hard, wear-resistant surface and a tough, shock-absorbing core.
Maximum Impact Resistance: Designed to withstand the constant high-frequency vibration and impact loads generated during heavy-duty demolition and rock breaking.
Prevents Tool Ejection: Precision machining ensures the pin fits snugly within the breaker body, securely locking the moil point or chisel in place to prevent accidental ejection and ensure operator safety.
Quick & Easy Installation: Manufactured to exact tolerances for smooth insertion and removal, reducing downtime during routine tool changes or maintenance.
Product Details:
Part Number (Retainer): 3315203000
Component Type: Tool Retainer / Rod Pin / Stop Pin
Compatible Models: Atlas Copco SB302, SBU340 Hydraulic Breakers
Also Fits: Epiroc SBU340 models (formerly Atlas Copco)
Manufacturer: Toparts
Keep your demolition projects running safely and efficiently. Invest in the trusted strength of the Toparts 3315203000 Hydraulic Breaker Tool Retainer to ensure your SB302 or SBU340 hammer is always ready for the toughest jobs.
