No.

Description

Quantity

Part number

1

Percussion unit

1

-

2

Elastic pad

1

3363 0334 67

3

Shock absorber

2

3363 0334 65

4

Guide plate

2

3363 0357 95

5

Guide plate

1

3363 0357 93

6

Guide plate

1

3363 0841 99

20(21-24)

Transport safety device complete

1

3363 0834 16

21

Transport safety device

1

-

22

Allen screw

2

3360 0268 83

23

Label transport safety device

1

3363 0918 72

24

Nut

2

3360 1032 54

31

Cover

1

3363 0335 51

32

Plug

2

3363 0860 11

33

Plug

13

3363 0860 15

34

Plug

1

3363 0860 17

95

Lifting eye

1

3363 1119 94

99

Breaker box

1

3363 0988 77

500

ContiLube®  II

1

3363 0671 23

550

Connecting kit for ContiLube®  II

1

3363 0834 21

1

Percussion unit

1

-

2

Elastic pad

1

3363 0334 67

3

Shock absorber

2

3363 0334 65

4

Guide plate

2

3363 0357 95

5

Guide plate

1

3363 0357 93

6

Guide plate

1

3363 0841 99

11

Floating ring

1

3363 0706 61

12

Counter ring

1

3363 0357 75

13

Guide ring

1

3363 0357 77

14

Bolt

2

3363 0697 71

15

Locking bush

2

3363 0330 43

18

Base for wiper

1

3363 0886 59

19

Wiper

1

3363 0660 69

20(21-24)

Transport safety device complete

1

3363 0834 16

21

Transport safety device

1

-

22

Allen screw

2

3360 0268 83

23

Label transport safety device

1

3363 0918 72

24

Nut

2

3360 1032 54

31

Cover

1

3363 0335 51

32

Plug

2

3363 0860 11

33

Plug

13

3363 0860 15

34

Plug

1

3363 0860 17

95

Lifting eye

1

3363 1119 94

98

Breaker box

1

3363 0988 78

500

ContiLube®  II

1

3363 0671 23

550

Connecting kit for ContiLube®  II

1

3363 0834 21

100

Cylinder cover

1

3363 0682 01

101

Main control valve

1

3363 0330 29

102

Cover

1

3361 3315 55

103

O-ring

1

3360 3143 75

104

Allen screw

6

3360 1037 76

106

Frequency switching valve

1

3363 0354 53

107

Threaded plug

1

3363 0354 25

108

O-ring

1

3360 3143 70

114

Connecting screw

1

3361 8546 57

115

O-ring

1

3360 4781 71

130

Non-return valve

1

3361 8545 11

131

Blind flange

2

3363 0340 41

132

O-ring

2

3360 3143 72

133

Allen screw

8

3360 1060 74

160

HP-accumulator

1

3363 0695 85

161

Fastening screw

6

3363 0704 90

163

Pair of lock washers

6

3361 3337 03

164

O-ring

1

3361 0319 12

165

Back-up ring

1

3361 8505 29

166

O-ring

1

3361 0319 90

170

Strainer disk

1

3361 8441 13

171

Threaded plug

1

3361 8441 15

172

Threaded insert

6

3361 0319 89

173

Threaded insert

6

3361 0315 29

174

Threaded insert

8

3361 0319 46

180(181-183)

Filling valve complete

1

3363 0872 86

181

Filling valve

1

-

182

Threaded plug

1

3360 4784 26

183

O-ring

1

3360 1751 25

190(191-192)

Tensioning bolt complete

4

3363 0949 27

191

Tensioning bolt

1

3363 0990 37

192

Washer

1

3363 0977 73

200

Seal bush

1

3363 0977 99

201

Seal

1

3363 0318 72

202

O-ring

2

3360 4797 21

203

Seal

2

3363 0319 73

204

O-ring

2

3360 4781 69

205

Back-up ring

4

3363 0843 61

206

Ring

1

3363 0977 89

300

Cylinder

1

3363 0857 37

304

O-ring

1

3362 3281 26

307

Seal

1

3362 2675 57

308

Wiper

1

3363 0836 68

309

Seal

7

3362 2675 84

310

Seal

4

3362 2675 89

350

Percussion piston

1

3363 0857 30

370

Lock pin

1

3363 0330 51

390(391-392)

Seal kit

1

3362 2638 22

391

Seal

1

-

392

Back-up ring

1

-

601

Plug

1

3363 0825 93

602

O-ring

1

3363 0832 45

603

Valve piston

1

3363 0825 05

370

Lock pin

1

3363 0330 51

401

Retainer bar

2

3360 9819 27

402

Bolt

2

3363 0330 27

403

Plug

4

3362 2629 25

404

Protective cap

1

3363 0660 28

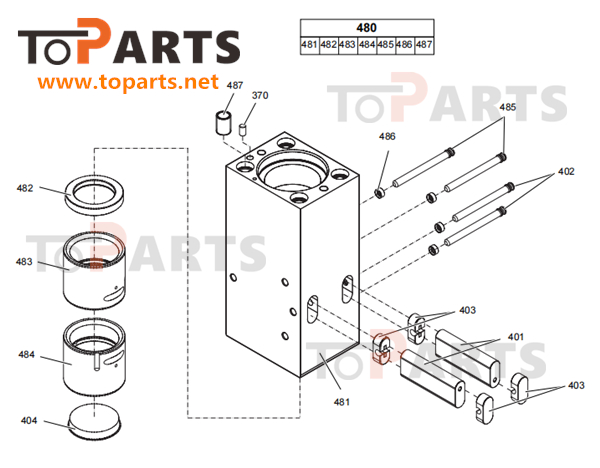

480(481-487)

Lower breaker part complete

1

3363 0895 04

481

Lower breaker part

1

-

482

Impact ring

1

3363 0690 77

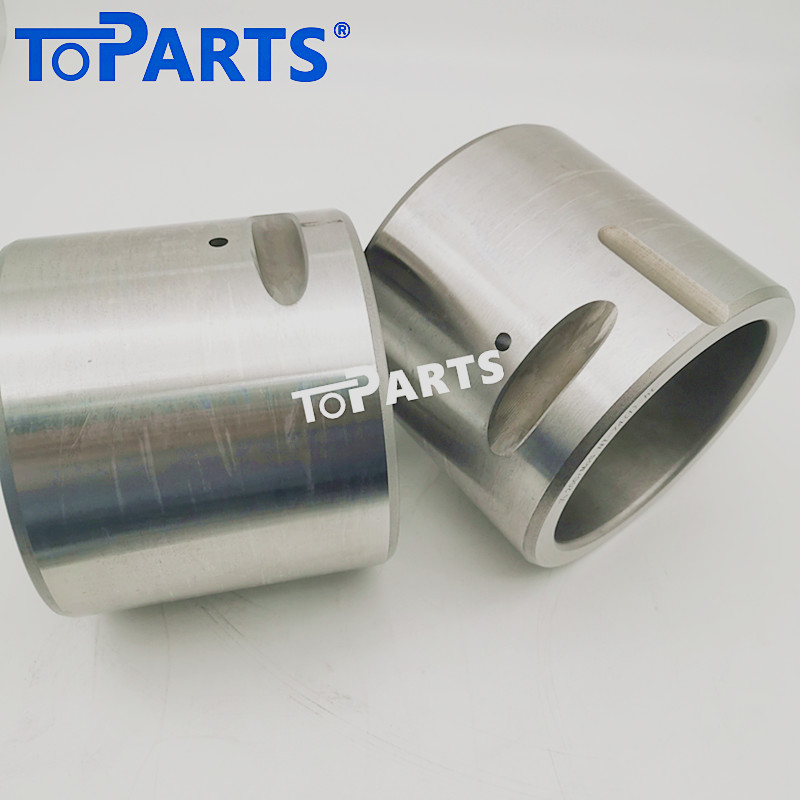

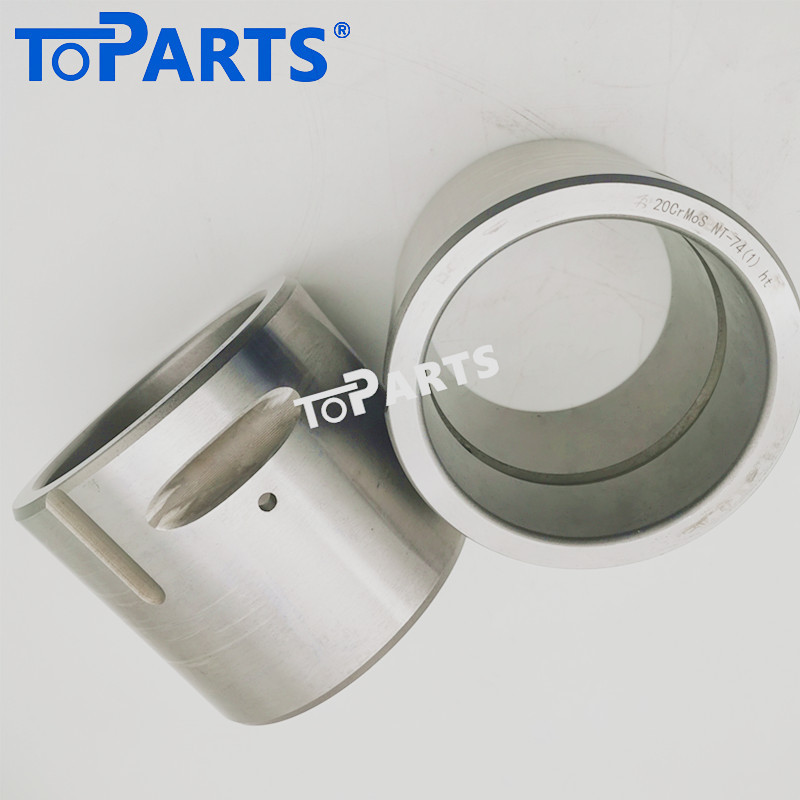

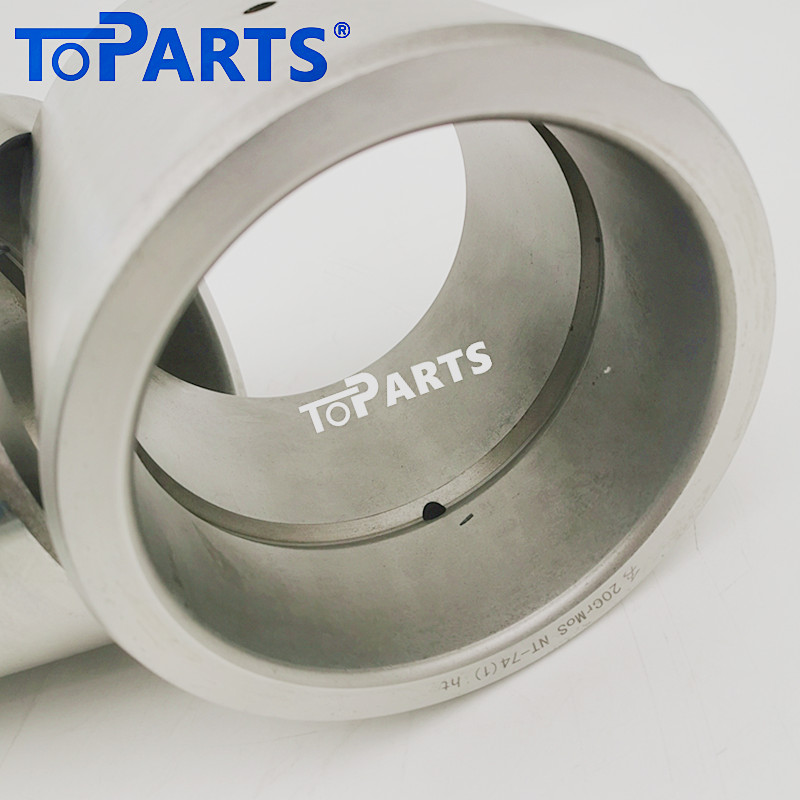

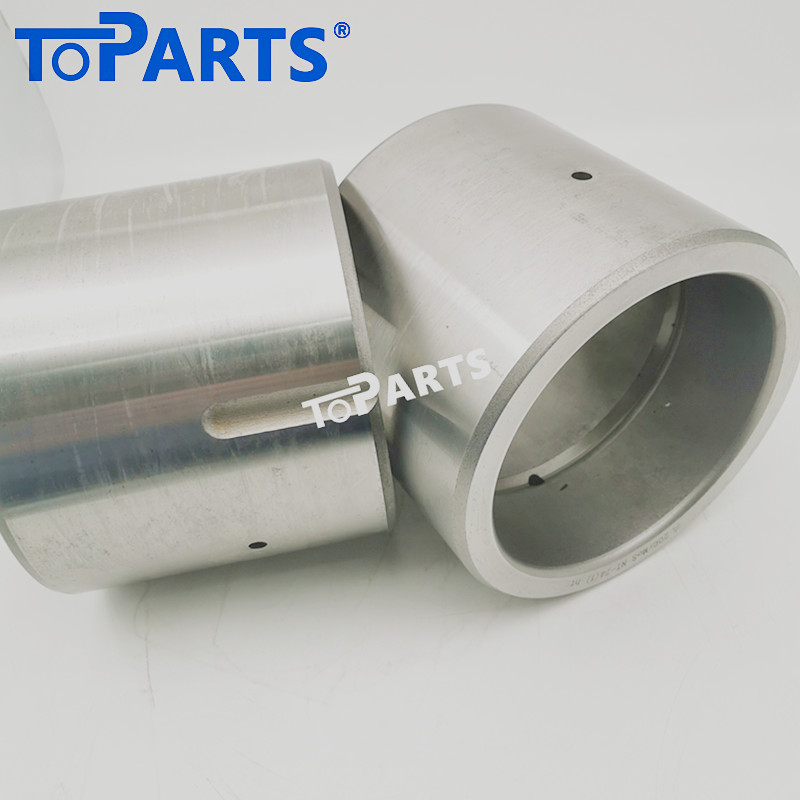

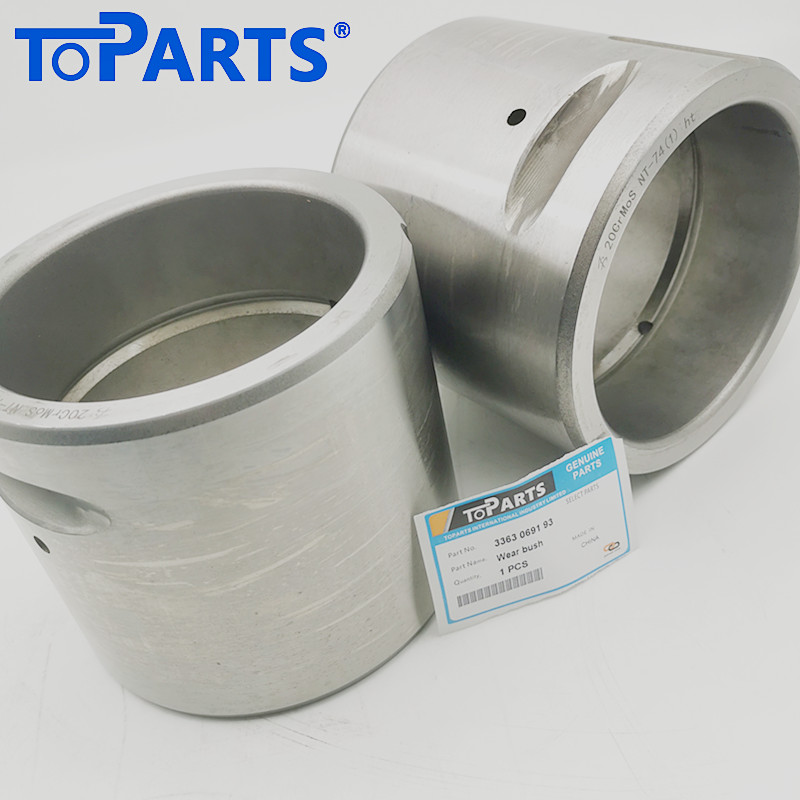

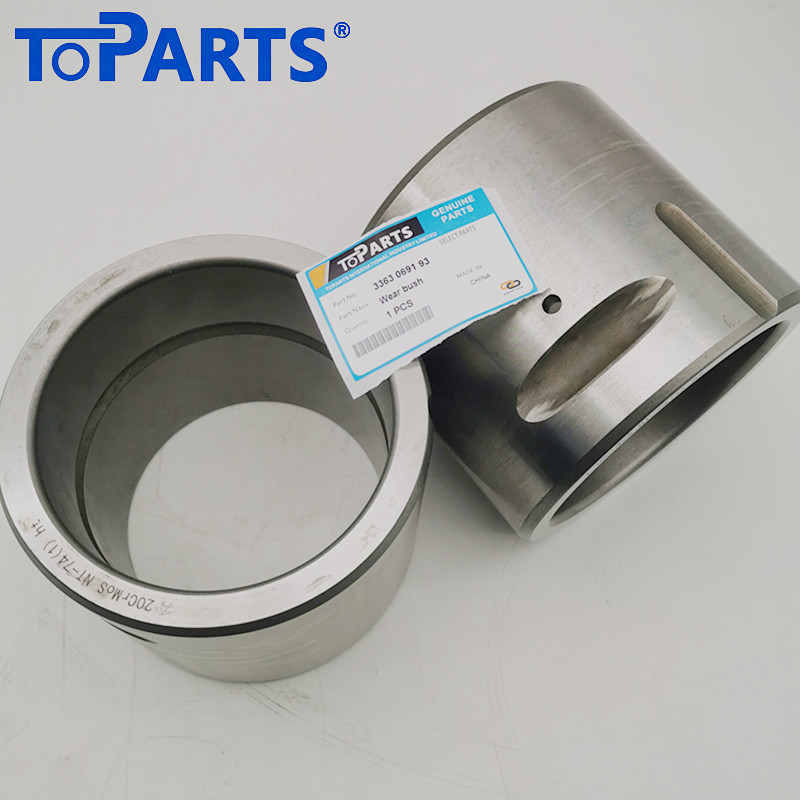

483

Wear bush

1

3363 0691 93

484

Wear bush

1

3363 0886 67

485

Bolt

2

3363 0330 27

486

Locking bush

4

3363 0330 43

487

Threaded insert

4

3363 0317 74

550(555-571)

Connecting kit

1

3363 0834 21

555

Support

1

3363 0689 37

556

Allen screw

7

3360 1037 50

558

Pair of lock washers

7

3361 8505 96

559

Adapter

1

3363 0668 87

560

Adapter

1

3363 0687 45

561

Seal

2

3363 0669 51

562

Fitting

1

3363 0662 33

563

Fitting

1

3363 0662 34

564

Fitting

1

3363 0871 86

565

Fitting

1

3363 0871 85

570

Hydraulic hose

1

3363 0838 74

571

Hydraulic hose

1

3363 0838 78

Seal kit

1

3363 0343 11

103

O-ring

1

3360 3143 75

108

O-ring

1

3360 3143 70

115

O-ring

1

3360 4781 71

132

O-ring

2

3360 3143 7

164

O-ring

1

3361 0319 12

165

Back-up ring

1

3361 8505 29

166

O-ring

1

3361 0319 90

182

Plug

1

3360 4784 26

183

O-ring

1

3360 1751 25

201

Seal

1

3363 0318 72

202

O-ring

2

3360 4797 21

203

Seal

2

3363 0319 73

204

O-ring

2

3360 4781 69

205

Back-up ring

4

3363 0843 61

304

O-ring

1

3362 3281 26

307

Seal

1

3362 2675 57

308

Wiper

1

3363 0836 68

309

Seal

7

3362 2675 84

310

Seal

4

3362 2675 89

390

Seal kit

1

3362 2638 22

391

Seal

1

-

392

Back-up ring

1

-
