Parts list
|
NO. |
Part No. |
Product Name |
Qty |
|
1 |
|
Percussion unit |
1 |
|
2 |
3363105141 |
Elastic pad |
1 |
|
3 |
3363122756 |
Shock absorber |
1 |
|
4 |
3363115013 |
Guide plate |
1 |
|
5 |
3363115908 |
Guide plate |
1 |
|
6 |
3363115909 |
Guide ring |
1 |
|
8 |
3363105995 |
Cap |
1 |
|
20(21-24) |
3363083416 |
Transport safety device complete |
1 |
|
21 |
|
Transport safety device |
1 |
|
22 |
3360026883 |
Allen screw |
2 |
|
23 |
3363091872 |
Label transport safety device |
1 |
|
24 |
3360103254 |
Nut |
2 |
|
31 |
3363115916 |
Cover |
1 |
|
34 |
3361850596 |
PAIR OF LOCK WASHERS |
3 |
|
35 |
3360103750 |
Allen screw |
3 |
|
37 |
3362267897 |
Plug |
4 |
|
38 |
3362267893 |
Plug |
1 |
|
52 |
3363114768 |
Retainer bar |
2 |
|
53 |
3363114673 |
Plug |
2 |
|
54 |
3363114778 |
Bolt |
2 |
|
95 |
3363111994 |
Lifting eye |
1 |
|
96 |
3315439145 |
PROTECTIVE PLUG HATCON |
4 |
|
99 |
3363115898 |
Breaker box |
1 |
|
580 |
|
HATCON |
1 |
|
100 |
3363110017 |
Cover |
1 |
|
101 |
3361031951 |
O-ring |
1 |
|
104 |
3363109459 |
Main control valve |
1 |
|
105 |
3363109465 |
Cover |
1 |
|
106 |
3363102115 |
Cover |
1 |
|
107 |
3363098702 |
O-ring |
1 |
|
108 |
3363083725 |
Allen screw |
6 |
|
109 |
3360995665 |
Fitting |
2 |
|
110 |
3361353488 |
Protective cap |
2 |
|
111 |
3361333703 |
Pair of lock washers |
6 |
|
120 |
3363110016 |
Plate spring |
1 |
|
121 |
3363109471 |
Disk |
1 |
|
160 |
3360314551 |
O-ring |
2 |
|
161 |
3361031915 |
Threaded insert |
6 |
|
162 |
3363066963 |
Plug, M14 x 1.5 mm |
1 |
|
163 |
3360478439 |
Threaded plug |
1 |
|
180(181-183) |
3363087286 |
FILLING VALVE, complete |
1 |
|
181 |
|
FILLING VALVE |
1 |
|
182 |
3360478426 |
THREADED PLUG |
1 |
|
183 |
3360175125 |
O-RING |
1 |
|
191(192-193) |
3363110084 |
Bolt complete |
8 |
|
192 |
|
Bolt |
1 |
|
193 |
3363109463 |
Washer |
1 |
|
200 |
3363109461 |
Seal bush |
1 |
|
203 |
3363098700 |
Seal |
1 |
|
204 |
3363110027 |
Seal |
1 |
|
290(291-292) |
3363103152 |
Seal kit |
1 |
|
291 |
|
Seal |
1 |
|
292 |
|
Back-up ring |
1 |
|
101 |
3361031951 |
O-ring |
1 |
|
204 |
3363110027 |
Seal |
5 |
|
300 |
3363114923 |
Main body |
1 |
|
301 |
3363111447 |
Cylinder bush |
1 |
|
305 |
3363098705 |
Wiper |
1 |
|
306 |
3363110029 |
Stircomatic |
8 |
|
307 |
3362267582 |
Stircomatic |
1 |
|
308 |
3362267583 |
Stircomatic |
1 |
|
311 |
3360995339 |
Protective cap |
1 |
|
350 |
3363110020 |
Percussion piston |
1 |
|
370 |
3360106784 |
Parallel pin 14X28 |
1 |
|
382 |
3363109467 |
Impact ring |
1 |
|

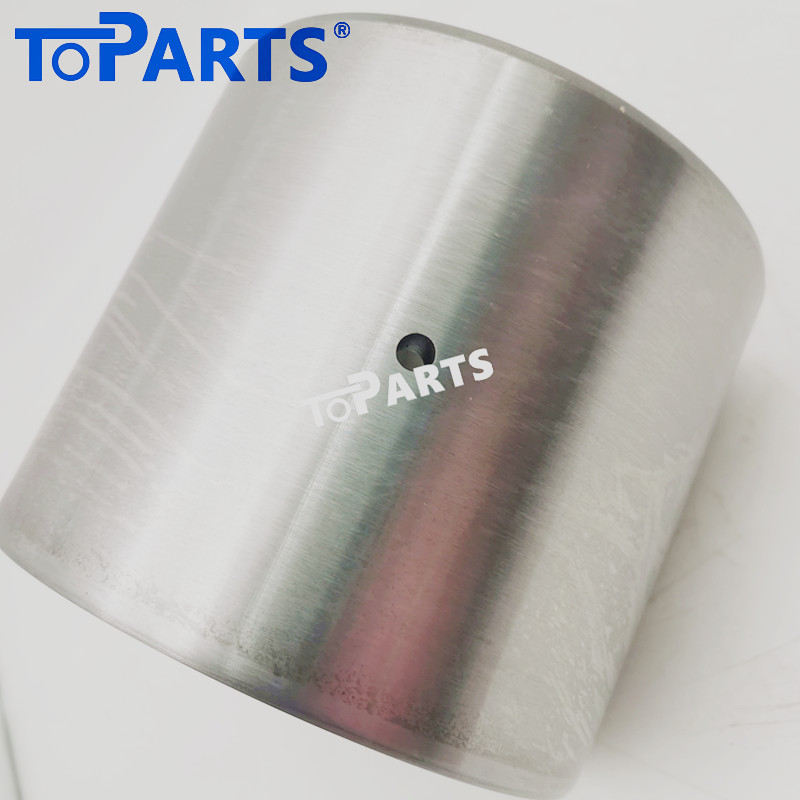

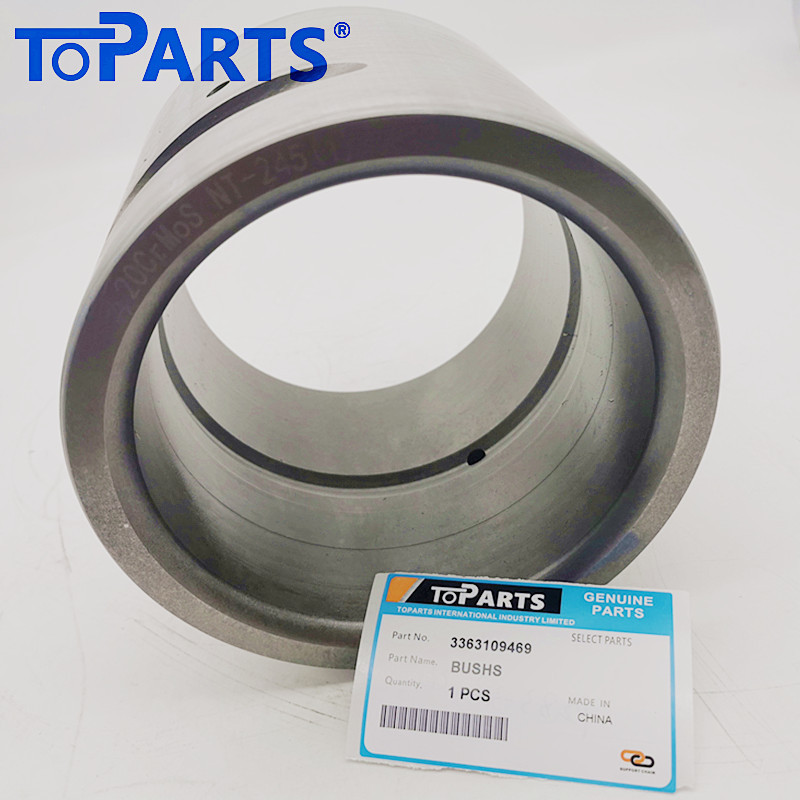

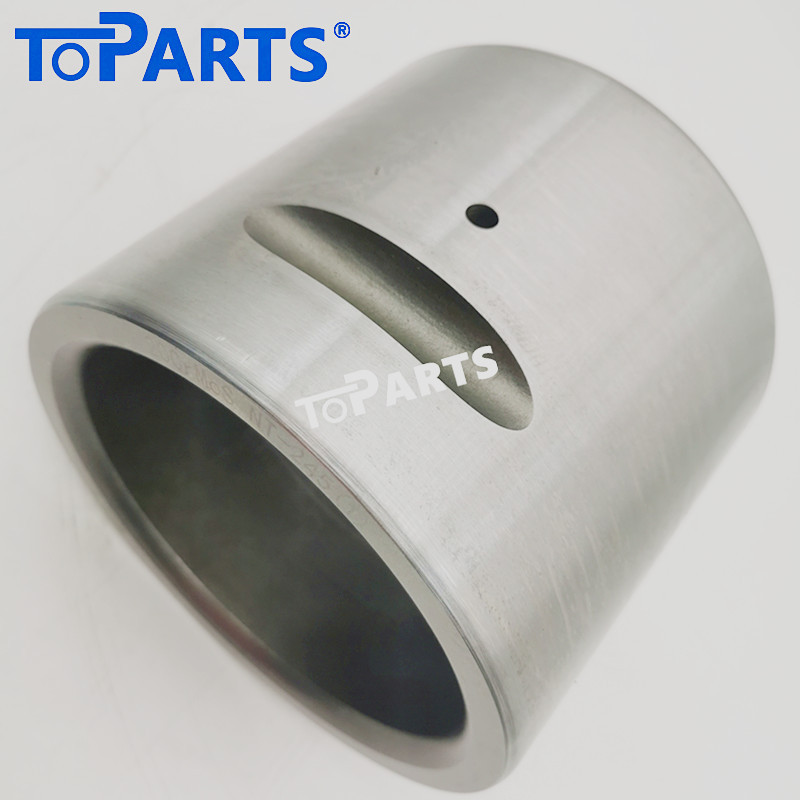

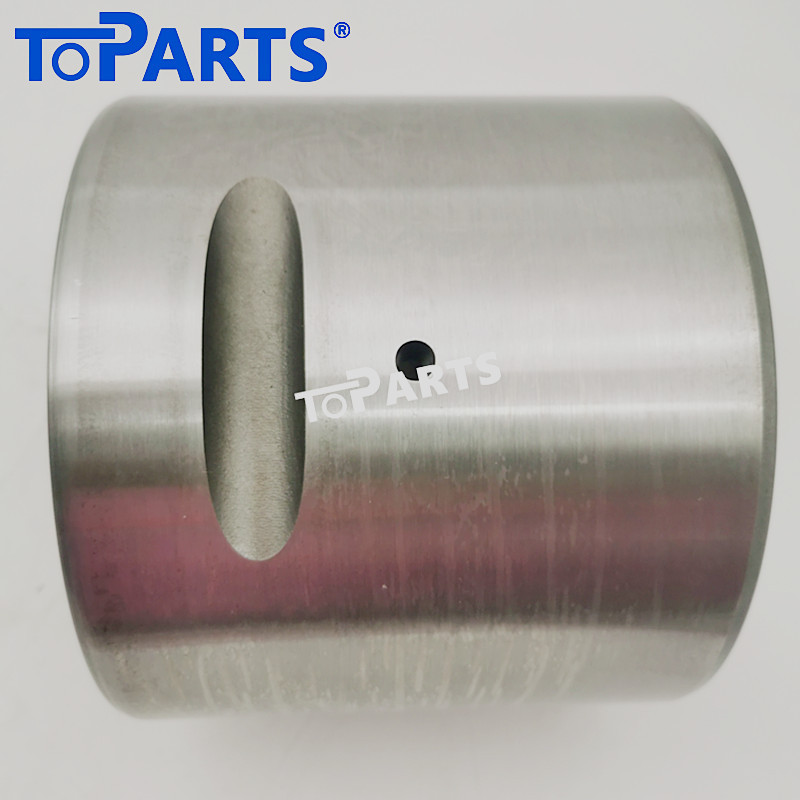

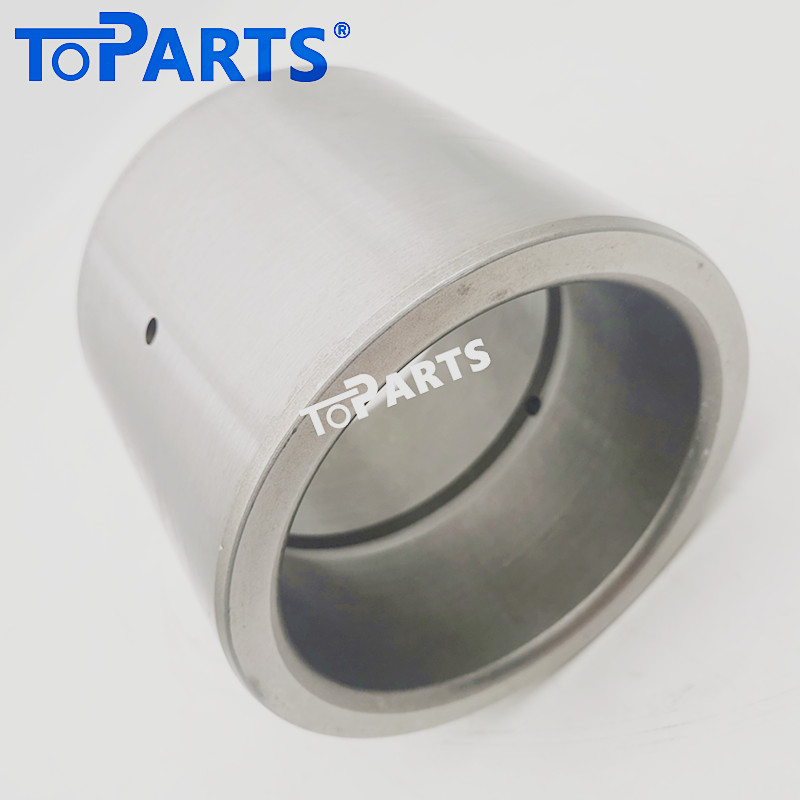

383 |
3363109469 |
Wear bush |
2 |
|
384 |
3363083574 |
Threaded insert |
8 |
|
385 |
3363109457 |
Bolt |
2 |
|
386 |
3363110076 |
O-ring |
2 |
|
387 |
3363109435 |
Non return valve, G1/2 in. |
1 |
|
388 |
3360433774 |
GREASE NIPPLE |
1 |
|
390(391-392) |
3363103153 |
Seal kit |
1 |
|
391 |
|
Seal |
1 |
|
392 |
|
Back-up ring |
1 |
|
580(581-587) |
|
HATCON |
1 |
|
581 |
|
TRACKING MODULE HATCON |
1 |
|
582 |
3315439130 |
DAMPER HATCON |
2 |
|
583 |
3315439110 |
HOUSING TYPE 1 HATCON |
1 |
|
584 |
3315439140 |
LOCK RING HATCON |
1 |
|
585 |
3315439120 |
SLEEVE HATCON |
4 |
|
586 |
3315439100 |
PRODUCT LABEL HATCON |
1 |
|
587 |
3315442600 |
SCREW HATCON |
4 |
|
KIT |
3363110085 |
Seal kit |
1 |
|
101 |
3361031951 |
O-ring |
2 |
|
107 |
3363098702 |
O-ring |
1 |
|
160 |
3360314551 |
O-ring |
2 |
|
182 |
3360478426 |
THREADED PLUG |
1 |
|
183 |
3360175125 |
O-RING |
1 |
|
203 |
3363098700 |
Seal |
1 |
|
204 |
3363110027 |
Seal |
6 |
|
291 |
3363102141 |
Seal |
1 |
|
292 |
3363102143 |
Back-up ring |
1 |
|
305 |
3363098705 |
Wiper |
1 |
|
306 |
3363110029 |
Stircomatic |
8 |
|
307 |
3362267582 |
Stircomatic |
1 |
|
308 |
3362267583 |
Stircomatic |
1 |
|
386 |
3363110076 |
O-ring |
2 |
|
391 |
3363102145 |
Seal |
1 |
|
392 |
3363102147 |
Back-up ring |
1 |

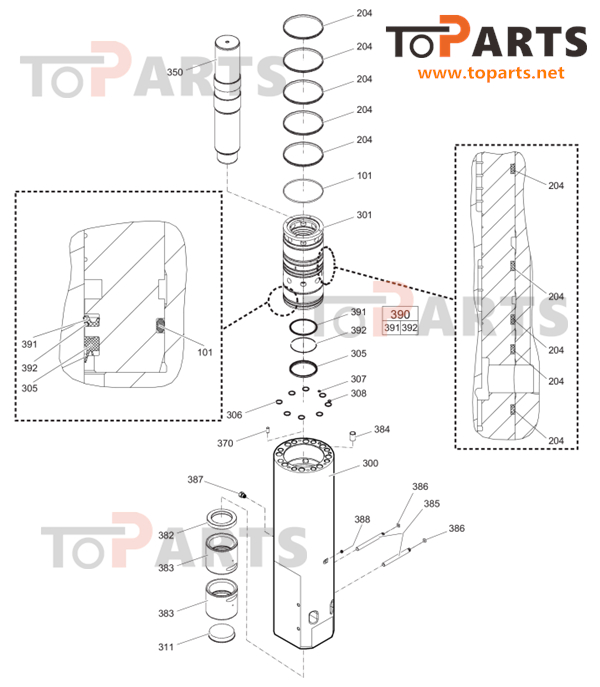

Exploded view
